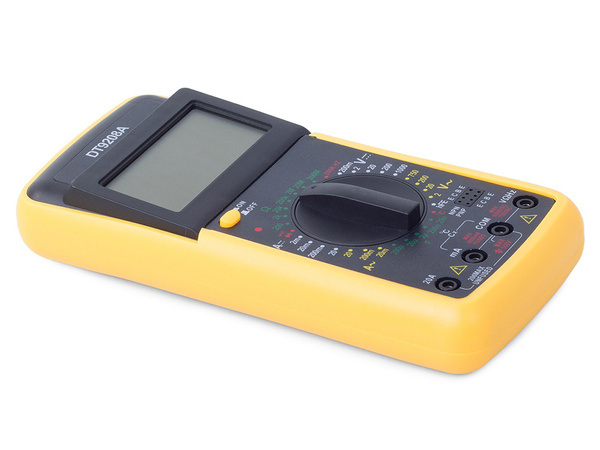

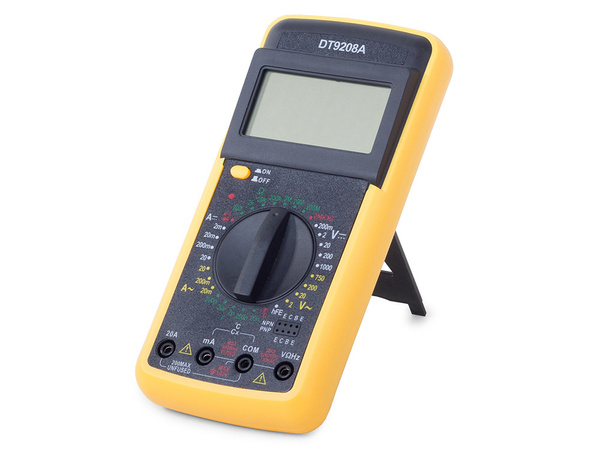

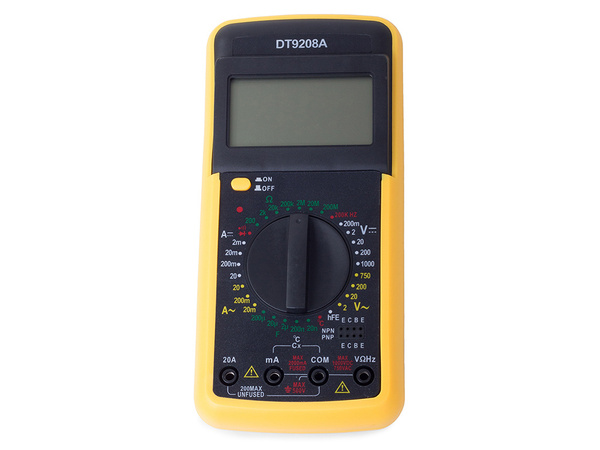

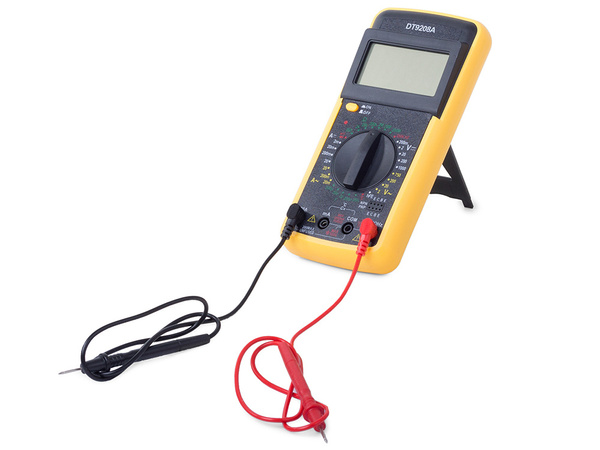

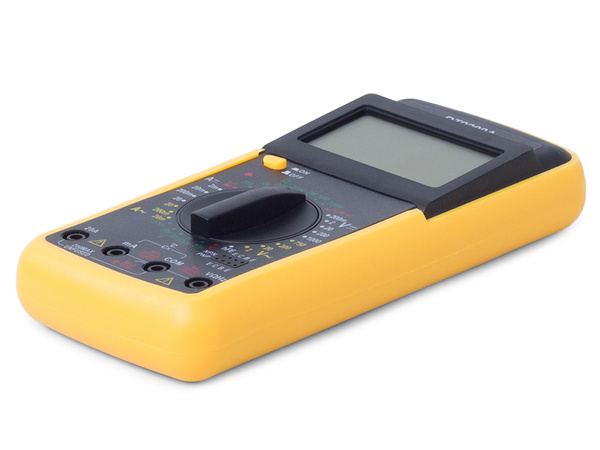

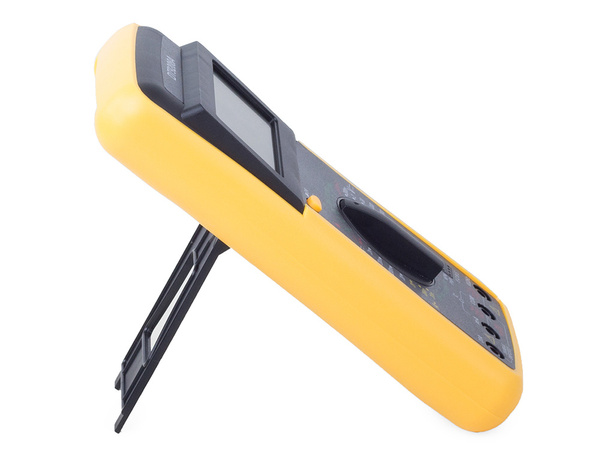

DIGITAL LCD CURRENT MULTIMETER DT9208A PROBE
The product we offer is an indispensable tool for every service technician.
TECHNICAL SPECIFICATIONS:
✅ Product code: 11032
✅ High maximum current and DC voltage measurement ranges (20A/1000V)
✅ Useful measurement ranges for small DC currents (2mA)
✅ Capacitor measurement (6 ranges up to 200 uF)

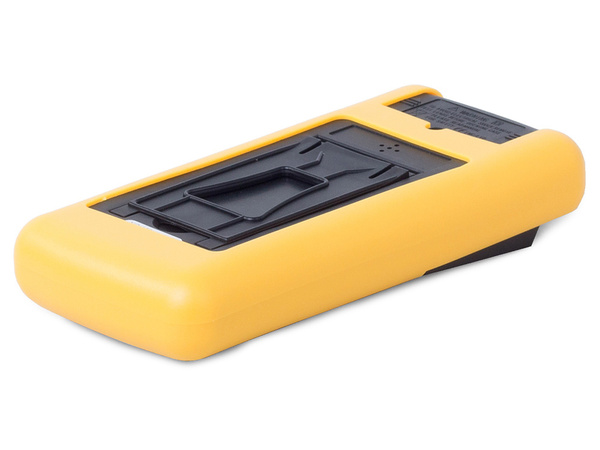

✅ Rubber holster for protection against mechanical damage and shock
✅ Developed in compliance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2
✅ CE certified

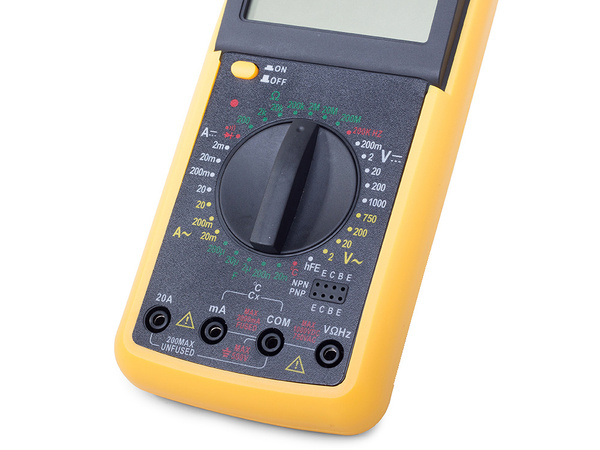

The meter allows the following types of measurements:
✅ DC and AC voltage measurement
✅ Measurement of direct current DC and alternating current AC
✅ Measurement of resistance
✅ Measurement of capacitance of capacitors
✅ Measurement of hFE of transistors
✅ Measurement of conduction voltage of diodes
✅ Control of circuit continuity
✅ Temperature measurement
TECHNICAL DATA:
✅ DCV:
- 200m/2/20/200/1000[V] +/-(0,5%+1)
- 1000V +/-(0,8%+2)
- 0.2mV-1000V
✅ ACV:
- 200mV +/-(1.2%+3)
- 2/20/200[V] +/-(0,5%+1)
- 750V +/-(1,2%+5)
- 0.2mV-750V
✅ DCA:
- 2m[A] +/-(0.8%+1)
- 20m[A] +/-(1%+3)
- 200mA +/-(1,2%+1)
- 20A +/-(2%+5)
- 10uA-20A
✅ ACA:
- 20mA +/-(1%+3)
- 200mA +/-(1,8%+3)
- 20A +/-(2%+5)
- 10uA-20A
✅ OHM:
- 200OHM +/-(0.8%+3)
- 2k/20k/200k/2M[OHM] +/-(0,8%+1)
- 20MOHM +/-(1%+2)
- 200MOHM +/-(5%+10)
- 0,2OHM-200MOHM
✅ CAP:
- 2n/20n/200n/2u/200u[F] +/-(4%+3)
- 1pF-200uF
✅ TEMP:
- -40 C - 400 C +/-0.75%(+/-3)
- 400 C - 1000 C +/- 1.5%(+/- 5)
✅ FREQUENCY:
- 200kHz +/- 1.5%(+/-10)
✅ Transistor test: yes
✅ Automatic circuit breaker: yes
✅ Diode test: yes
✅ Circuit continuity indication: yes

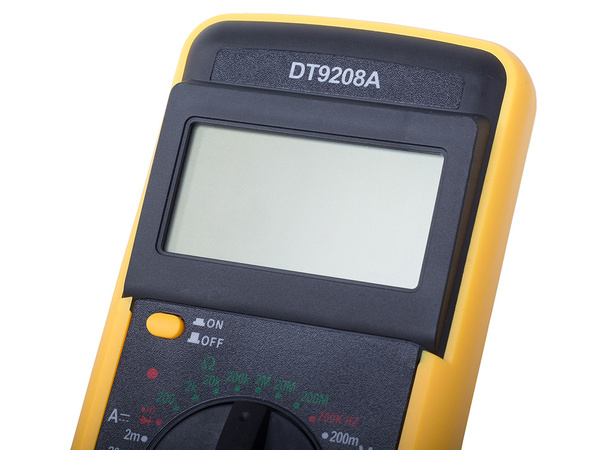

✅ LCD display: yes
✅ Battery: 2x AAA
✅ Net weight: 300g
✅ Display range: 1-999
✅ Display size: 33x63mm
✅ Dimensions: 91x189x32mm

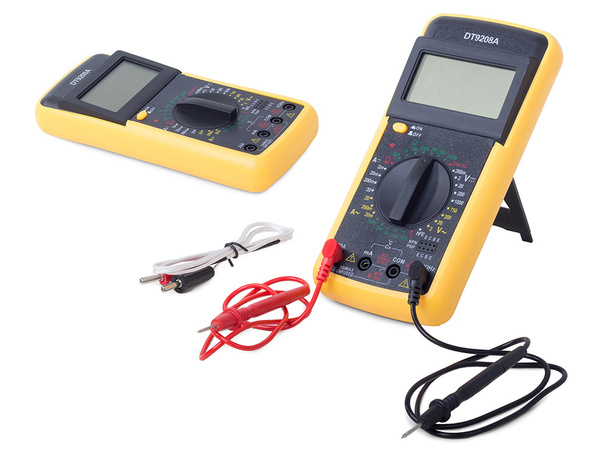

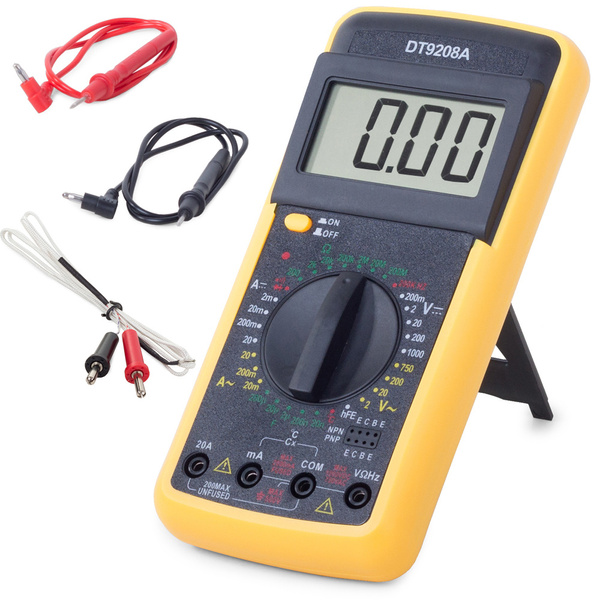

KIT INCLUDES:
☑️ Factory new digital meter
☑️ Set of test leads
☑️ Measurement cable SONDA
☑️ Battery 2x AAA
☑️ Original packaging
