Multimeter digital tester with lcd signal
![](https://upload.cdn.baselinker.com/products/3012437/b46a78466881f067594a22476c5bf217.jpg)

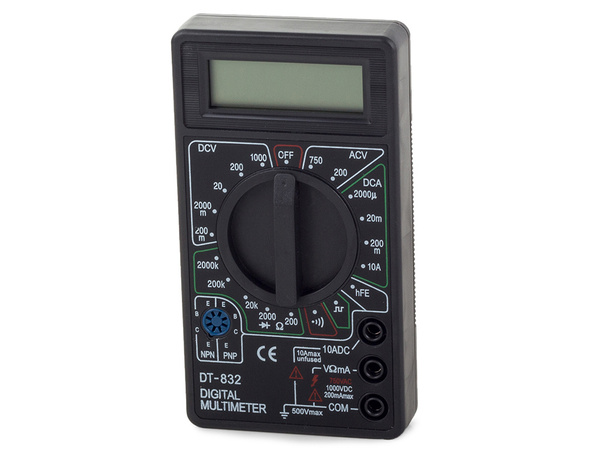

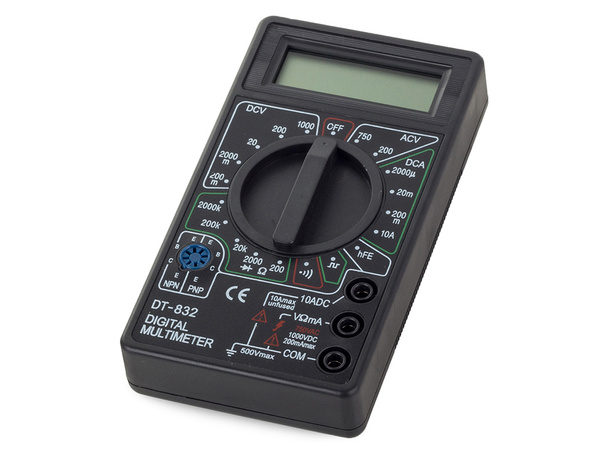

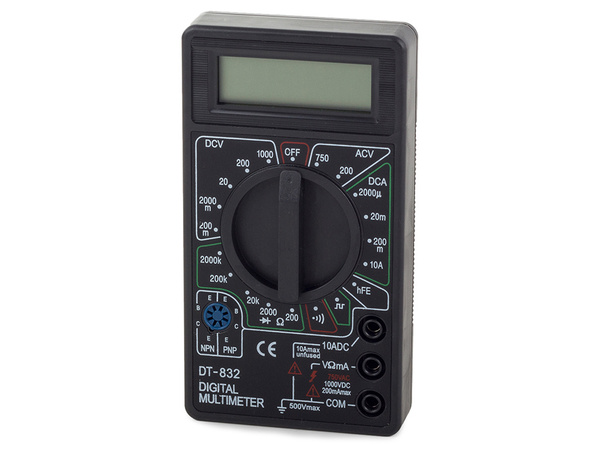

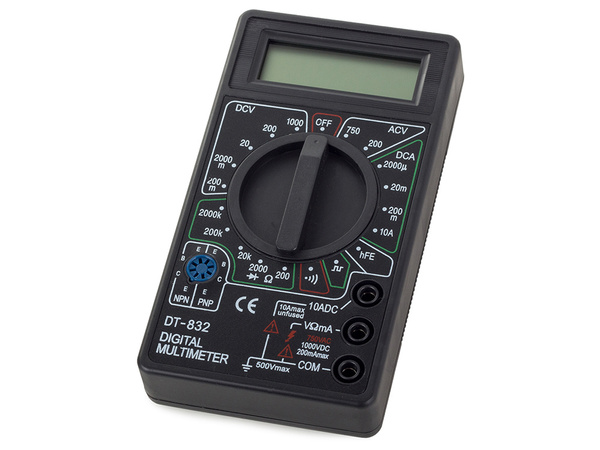

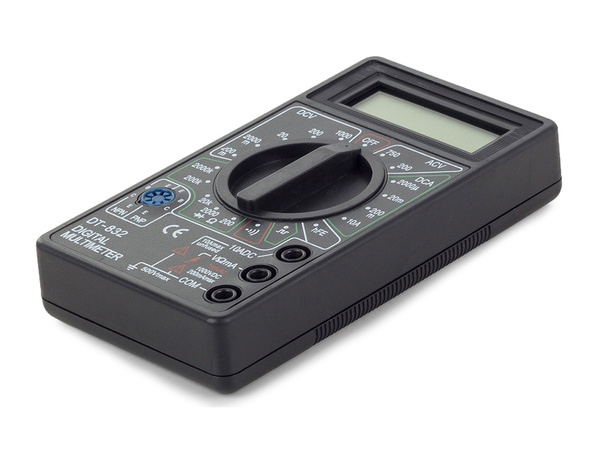

MULTIMETER DIGITAL TESTER WITH LCD SIGNAL DT-832

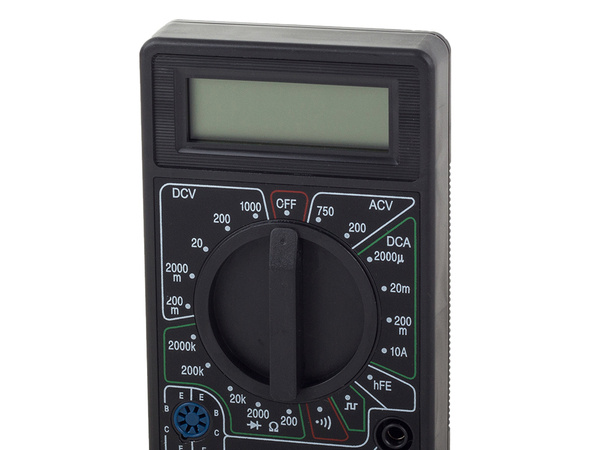

Capacitance measurement, high current/voltage ranges The meter has a large and easy to read displayThe product we offer is an indispensable tool for every service technician.
![](https://upload.cdn.baselinker.com/products/3012437/0f84c81615281fd350ee8726678e9c05.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/5ee96bfa88cc56b7d81fe7c28b2c968b.jpg)
TECHNICAL SPECIFICATIONS:
✅ Product code: 11031
✅ High maximum ranges for DC current and voltage measurement
✅ High maximum measuring ranges for AC voltage
✅ Useful measurement ranges for small DC currents
✅ Has a housing that protects against electric shock
✅ Developed in accordance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2.
✅ The meter is CE certified.
THE METER ALLOWS THE FOLLOWING TYPES OF MEASUREMENTS:
✅ DC and AC voltage measurement
✅ Measurement of DC current intensity
✅ Measurement of resistance
✅ Measurement of hFE of transistors
✅ Measurement of conduction voltage of diodes
✅ Circuit continuity test
![](https://upload.cdn.baselinker.com/products/3012437/5078cc6a276e6bc00e7121b0e82e2996.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/1b67ed7c60a9f5958367421447f78799.jpg)
TECHNICAL DATA:
- DCV:
✅ 200m +/-(1,0%+/- 2)
✅ 2000m/20/200[V] +/-(1.2%+/- 2)
✅ 1000V +/-(1,5%+/- 2)
✅ 0.2 mV-1000V
- ACV:
✅ 200V +/-(2,0%+/-10)
✅ 750V +/-(2,0%+/-10)
✅ 200V-750V
- DCA:
✅ 2000uA/20mA +/-(1.5% +/-2)
✅ 200mA +/-(2% +/-2)
✅ 10A +/- (3% +/-2)
✅ 2000uA-10A
- OHM:
✅ 200/2000/20k/200k[ohms] +/-(1.2%+/-2)
✅ 2000kohm +/-(1.5% +/- 2)
✅ 200ohm-2000kohm
✅ Transistor test: yes
✅ Diode test: yes
✅ Circuit continuity indication: yes
✅ LCD display: yes
✅ Battery: 9V 6F22
✅ Display range: 1-999
✅ Display size: 15x46mm
✅ Dimensions: 67x124x22mm
Developed in accordance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2.
![](https://upload.cdn.baselinker.com/products/3012437/e878c8ee1c340e917ae7788c3b4f279c.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/c4ac472ca9b576262a05a2125ffb9345.jpg)

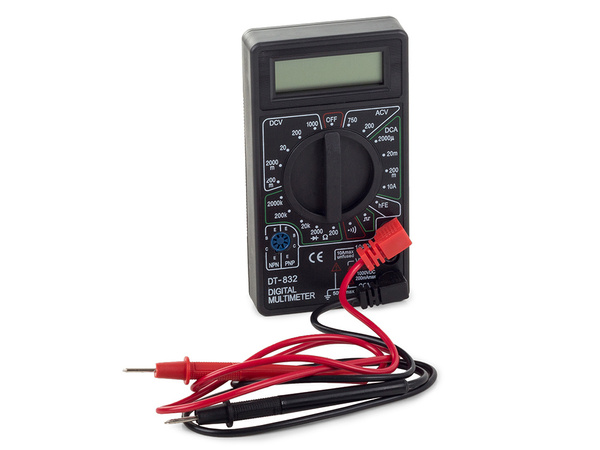

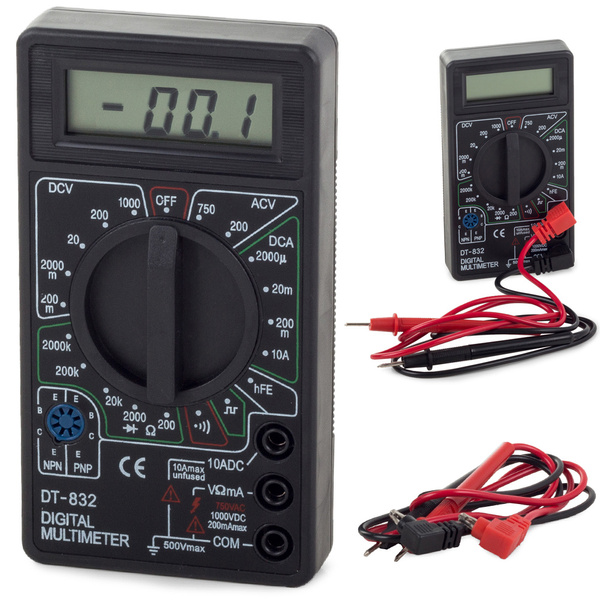

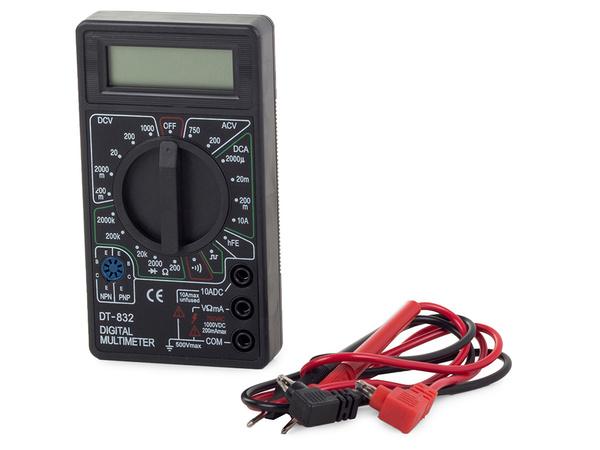

KIT INCLUDES:
☑️ Factory new DT-832 digital meter
☑️ A set of test leads
☑️ 9V 6F22 battery
☑️ Original packaging
