Digital multimeter current meter dt9205a lcd cyfra
![](https://upload.cdn.baselinker.com/products/3012437/087bae71c9cc30092643bbe2fe4d3b24.jpg)

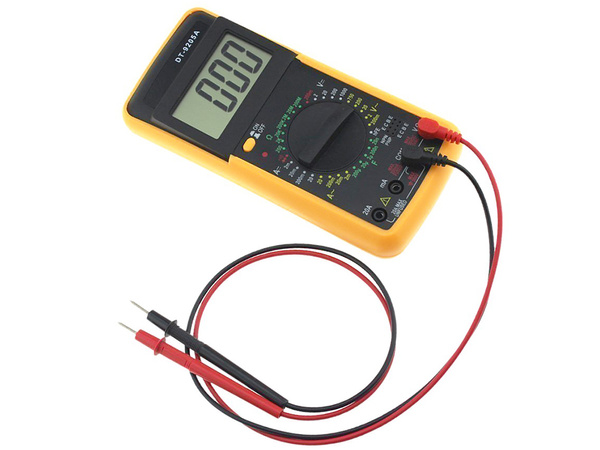

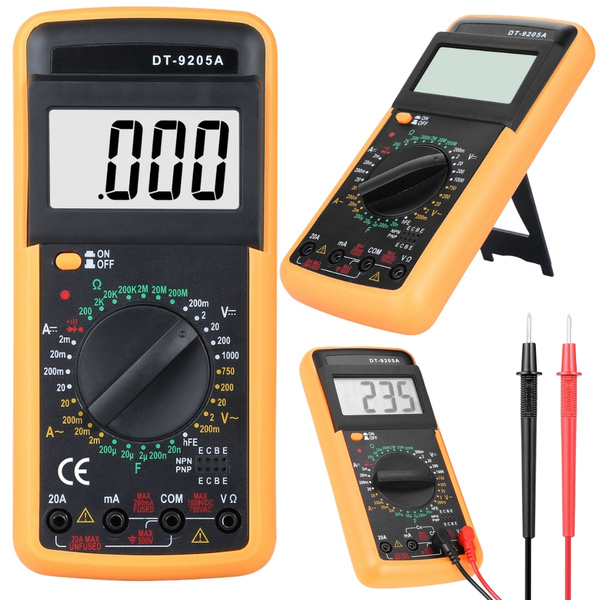

DIGITAL CURRENT MULTIMETER DT9205A LCD DIGITIZER
Capacitance measurement, high current/voltage ranges The meter has a large and easy to read display, very good precision of measurements. The product we offer is an indispensable tool for every service technician.
![](https://upload.cdn.baselinker.com/products/3012437/fcd9831ce2ca65c135545408fcdc34f4.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/a14c7898890b793f0a01efa9f1bc8ad2.jpg)
It has a triple short-circuit (circuit continuity) test signalisation:
✅ Audible signalling (buzzer 0.5s);
✅ Numerical signalling;
✅ LED indication (red LED)
The meters allow the following types of measurement:

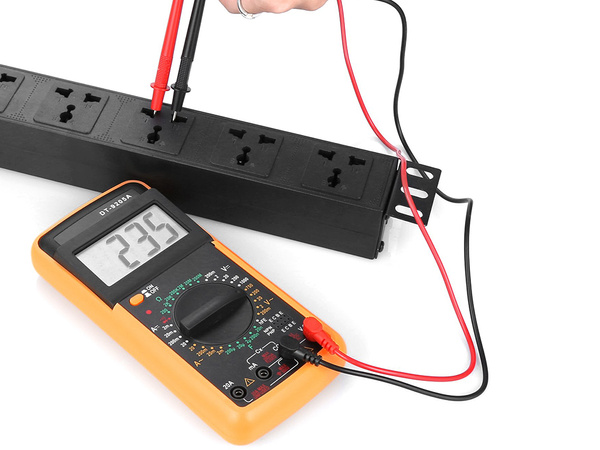

✅ Measurements of direct (DC) and alternating (AC) voltage
✅ Measurement of direct (DC) and alternating current (AC) intensity
✅ Resistance measurements
✅ Capacitance measurements
✅ Measurement of hFE of transistors
✅ Conductive voltage measurements of diodes
✅ Circuit continuity check
![](https://upload.cdn.baselinker.com/products/3012437/6cd44e1ddf40df57c02ee17737e961f5.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/519b44dbd9edf853bf5de3990b92d96a.jpg)
TECHNICAL SPECIFICATIONS:
✅ Product code: 11028
✅ High maximum ranges for DC current and voltage measurement (20A/1000V);
✅ Automatic power off (auto power off), effectively prevents battery discharge;
✅ Useful ranges for measuring small DC currents (2mA/20mA - smallest indication is 0.001mA!);
✅ Capacitor capacitance measurement (up to 6 ranges, up to 200uF!);

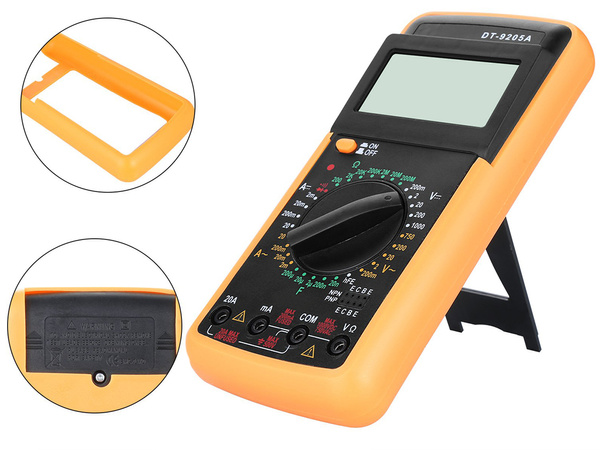

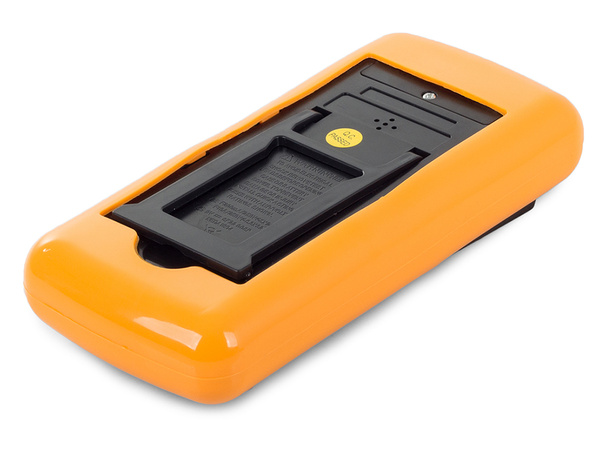

✅ Rubber case, holster, for protection against mechanical damage and shock.

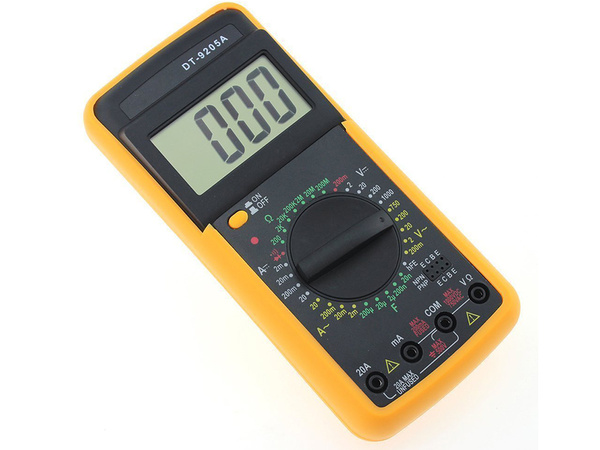

✅ Large, easy-to-read LCD display
✅ Increased display size.
✅ Very good measurement precision
TECHNICAL DATA:
✅ DCV:
- 200m/2/20/200[V] +/-(0.5%+1)
- 1000V +/-(0,8%+2)
- 0.1mV-1000V
✅ ACV:
- 200mV +/-(1.2%+5)
- 2/20/200[V] +/-(1%+5)
- 750V +/-(1,2%+5)
- 0.1mV-750V
✅ DCA:
- 2m/20m[A] +/-(1%+3)
- 200mA +/-(1,5%+3)
- 20A +/-(2%+10)
- 1uA-20A
✅ ACA:
- 2mA +/-(1.2%+5)
- 20mA +/-(1,2%+5)
- 200mA +/-(1%+5)
- 20A +/-(2%+10)
- 10uA-20A
✅ OHM:
- 200OHM +/-(1%+10)
- 2k/20k/200k/2M[OHM] +/-(1%+3)
- 20MOHM +/-(1%+5)
- 200MOHM +/-(5%+20)
- 0.1OHM-200MOHM
✅ CAP:
- 2n/20n/200n/2u/200u[F] +/-(4%+3)
- 1pF-200uF
✅ Transistor test: yes
✅ Automatic circuit breaker: yes
✅ Diode test: yes
✅ Circuit continuity indication: yes
✅ LCD display: yes
✅ Power supply: 2 x AAA batteries (included)
✅ Display range: 1-999
✅ Display size: 3.3cm x6.3cm
✅ Size: 19cm x 9cm x 3.5
![](https://upload.cdn.baselinker.com/products/3012437/f00f955fbb962aaa62ec6e20937dd06d.jpg)
![](https://upload.cdn.baselinker.com/products/3012437/e48c6e2d25c4b0913eeae2331a248d55.jpg)
KIT INCLUDES:
☑️ Factory new digital meter

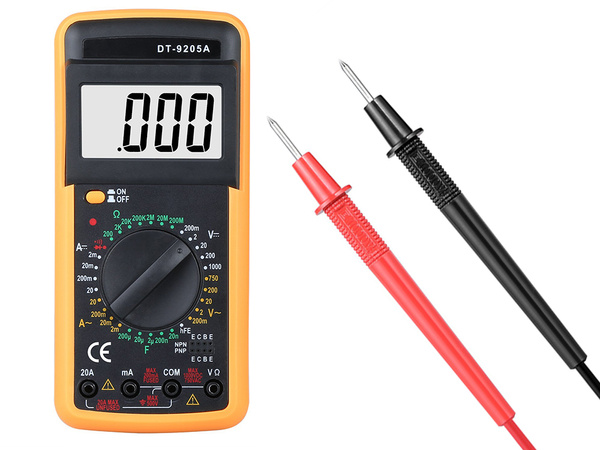

☑️ A set of test leads
☑️ 2 x AAA batteries
☑️ Original packaging
