ALARM GATE REMOTE CONTROL SELF-COPYING UNIVERSAL KEY FOB

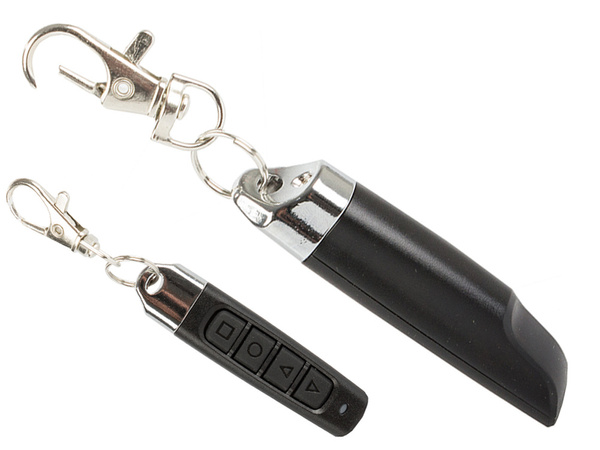

The universal self-copying key fob will allow us to copy the signal to the gate, alarm, etc. It has four programmable buttons. Thanks to the movable cover for the buttons, it will prevent their unwanted pressing.

NOTE: Before purchasing, please check that your remote control operates on a fixed code and 433.92 MHz frequency.

PRODUCT FEATURES:

✅ Code copying

✅ Deletion of codes

✅ Restoration of codes

✅ Four buttons

✅ Easy to use

COPYING INSTRUCTIONS:

MEMORY ERASE:

✅ Clear remote control history code. Press the "ARROW DOWN" and " UP ARROW" continuously until the LED flashes 3 times. Release the "DOWN ARROW" button (Hold still ⇧) and slowly press the "DOWN ARROW" button 3 times until the LED flashes.

Release both buttons, finish deleting the code.

COPY THE CODE FROM THE ORIGINAL TRANSMITTER:

✅ Place the remote control as close as possible to the original transmitter. Press and hold the button of the original transmitter, then press and hold the "ARROW UP" button of the self-copying remote until you see the duplicator LED flashing. Release both buttons, finish copying the code, copy another button in the same way

TECHNICAL SPECIFICATIONS:

✅ Product code: 10071

✅ Frequency: 433.92 MHz (fixed code)

✅ 4 channels to be programmed

✅ Robust housing

✅ Power supply: A27/12V battery (supplied)

✅ Operating current: 10mA

✅ Voltage: DC12V

✅ Dimensions: 55mm x 29mm x 14mm

KIT INCLUDES:

☑️ Factory new self-copy remote control
