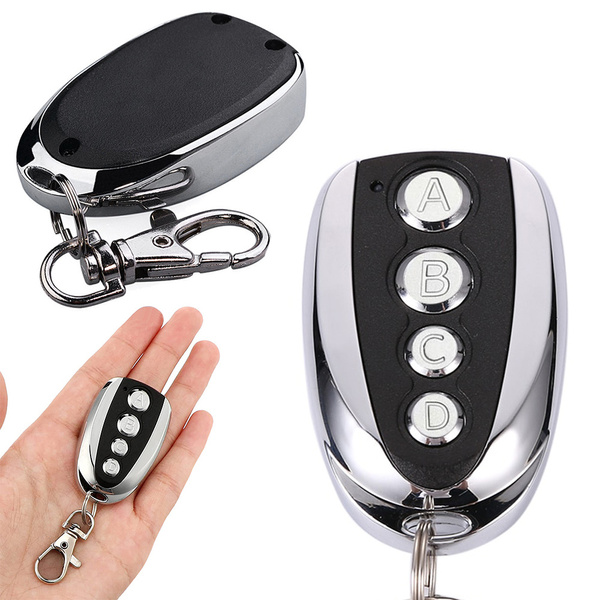

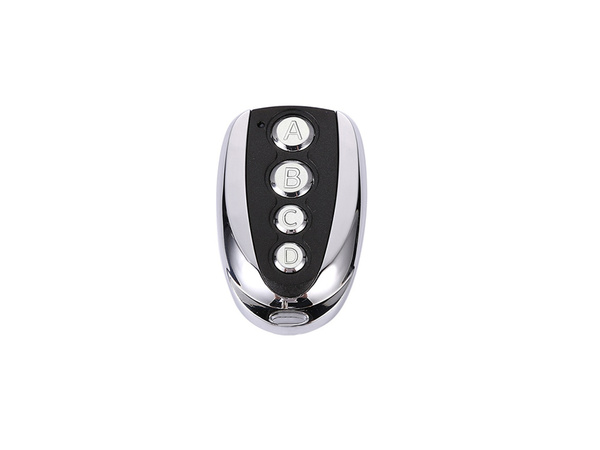

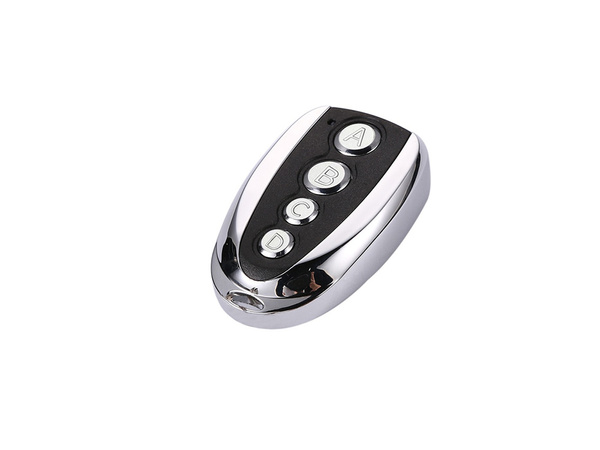

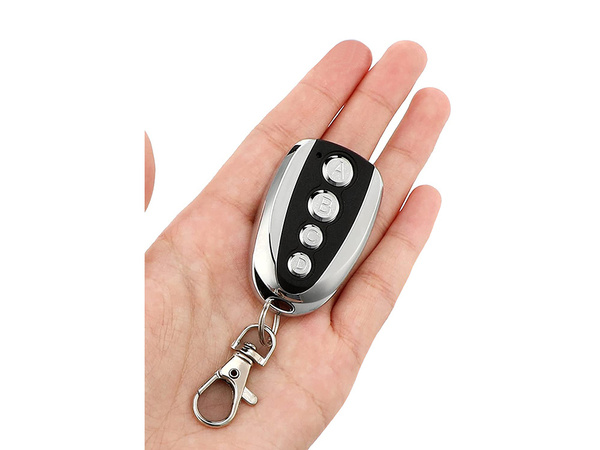

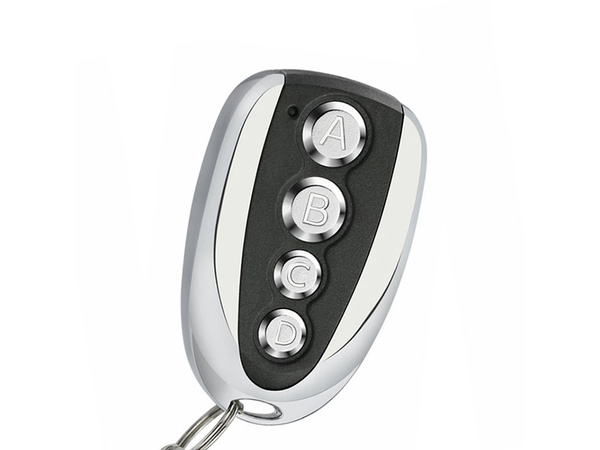

UNIVERSAL SELF-COPYING GATE ALARM REMOTE CONTROL

The universal self-copying remote control will allow us to copy the signal to the gate, alarm, etc. It has four programmable buttons.

NOTE: Before purchasing, please check that your remote control works on a fixed code and 433.92 MHz frequency.

COPYING INSTRUCTIONS:

✅ Resetting the memory:

1. Press and hold buttons A and B simultaneously - after two seconds the LED will flash three times.
2. Release button A and then press it quickly 3 times (button B must be pressed continuously). After a moment, the red LED will start flashing rapidly.
3. Release both buttons.
4. You will recognise the deleted memory by the fact that the remote control does not react with the LED to individual button presses. The memory of the remote control is now deleted.

✅ Cloning the remote control:

1. To start copying, you must first erase the previously stored button codes from the remote control (see "Erasing remote control memory").
2. Bring the two remotes together and press the button you wish to copy - the LED will flash slowly three times and then start flashing rapidly, indicating that the button has been copied correctly.
3. Repeat this process with the other remote control buttons.
4. Remember that both remotes must be very close to each other and the batteries must be in working order.

TECHNICAL SPECIFICATIONS:

✅ Product code: 10066

✅ High build quality

✅ Frequency: 433.92 MHz (permanent code)

✅ 4 channels to be programmed

✅ Robust metal casing

✅ LR27A 12V / L828 battery

✅ Operating current: 10mA

✅ Voltage: DC12V

✅ Dimensions: 12.5mm x 53mm x 32.6mm

KIT INCLUDES:

☑️ Factory new remote control

☑️ Key ring

☑️ Instruction manual
