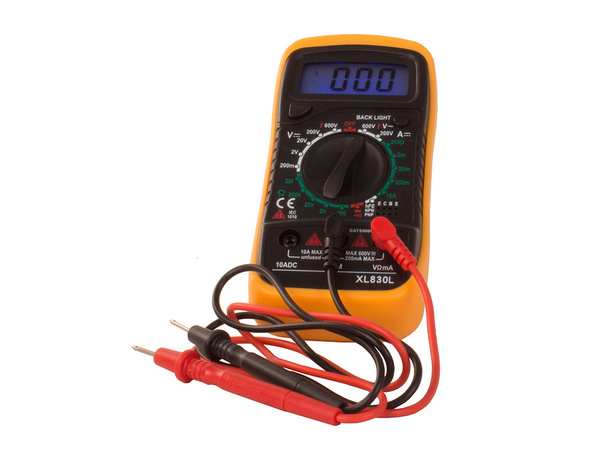

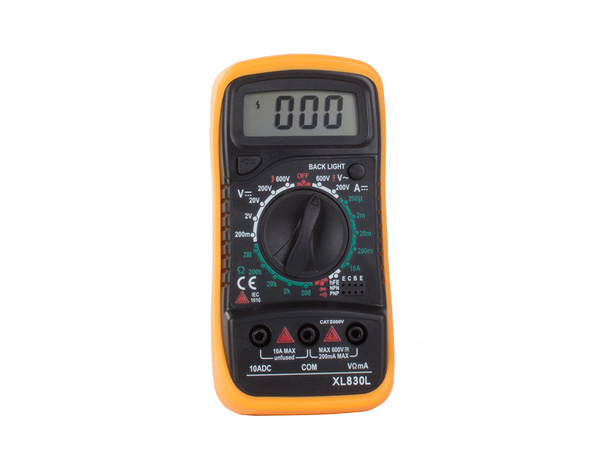

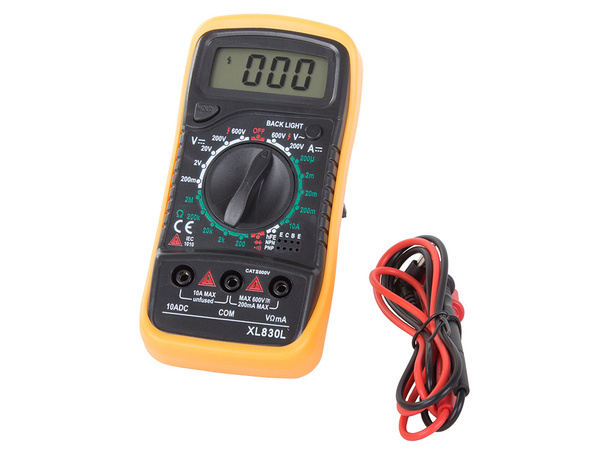

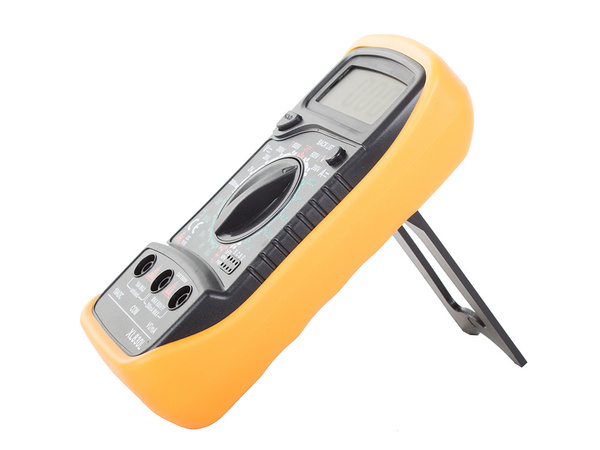

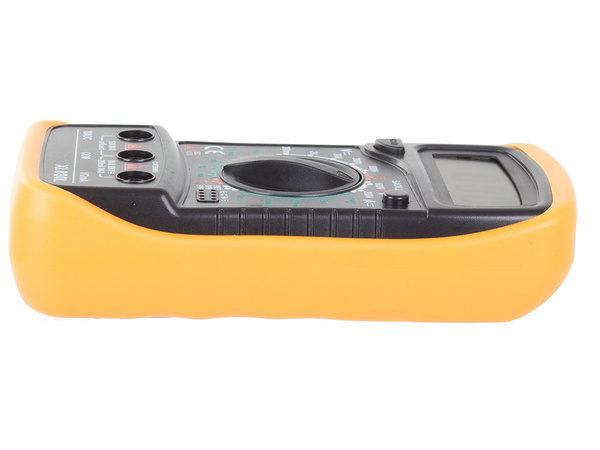

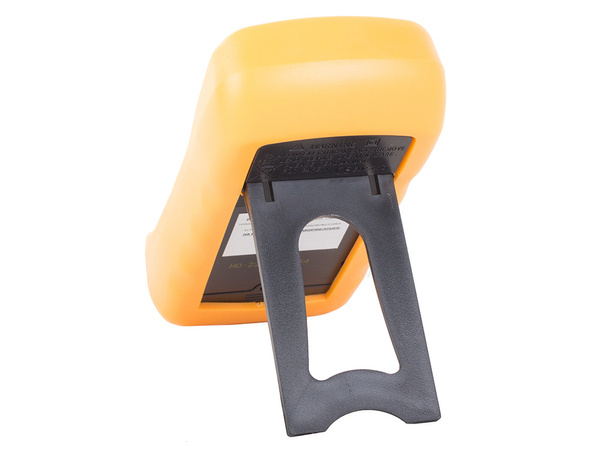

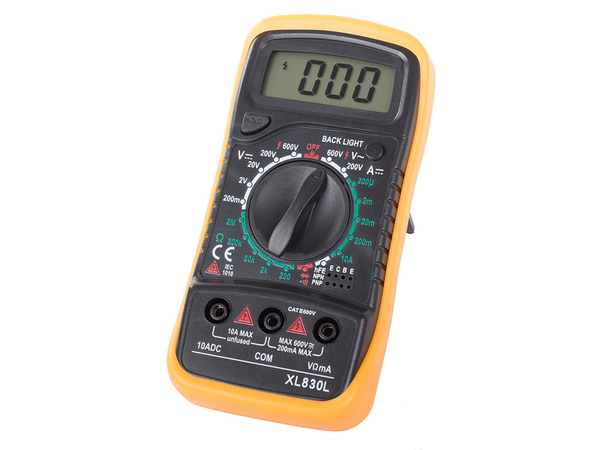

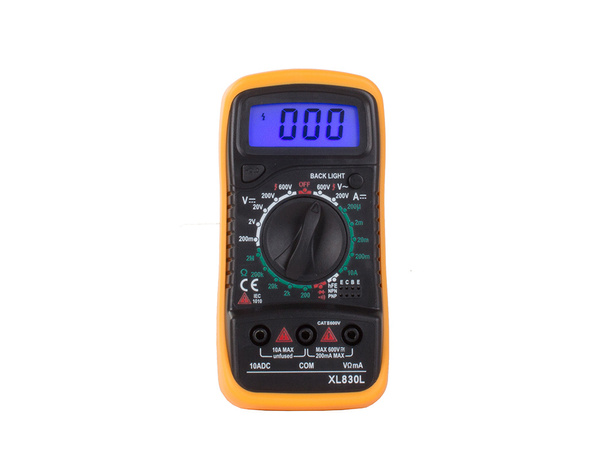

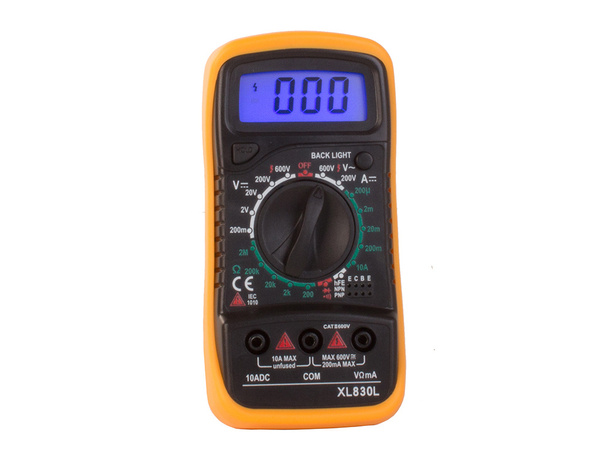

DIGITAL CURRENT METER MULTIMETER VOLTAGE TESTER + 9V BATTERY

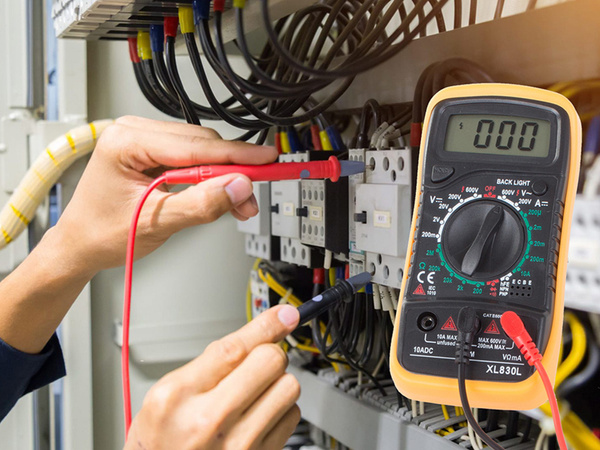

The digital meter is an indispensable tool for every electrician, mechanic and electronics service technician.

The voltage meter is equipped with a blue backlighting function so that the screen is always easy to read. The multimeter also has a hold function with which you can remember the last measurement

TECHNICAL SPECIFICATIONS:

✅ Product code: 11328

✅ High maximum current and DC voltage measurement ranges

✅ High maximum measuring ranges for AC voltage

✅ Useful measuring ranges for small DC currents

✅ Has a casing that protects against electric shock

THE METER ALLOWS THE FOLLOWING TYPES OF MEASUREMENTS:

✅ Circuit continuity check

✅ Measurement of resistance

✅ Measurement of diodes

✅ Measurement of DC current

✅ Measurement of DC and AC voltage

✅ Transistor measurement

✅ LCD backlighting

✅ HOLD

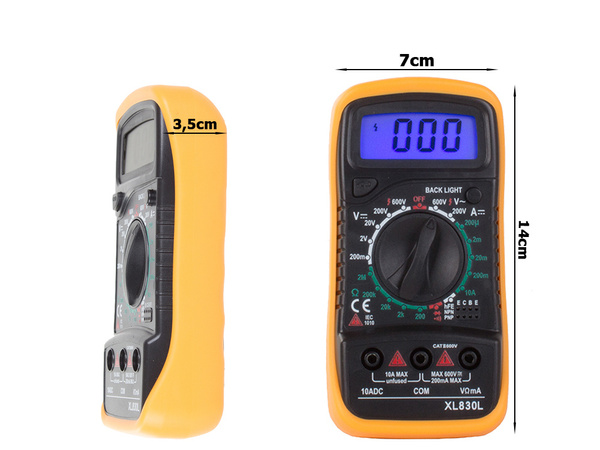

✅ Dimensions: 7cm x 14cm x 3.5cm

TECHNICAL DATA:

- DCV

✅ 200m/2/20/200[V] +/-(0.5%+/- 2)

✅ 1000V +/-(0,8%+/- 2)

✅ 0.2 mV-1000V

- ACV

✅ 200V +/-(1,2%+3)

✅ 750V +/-(1,2%+3)

✅ 0.2mV-750V

- DCA

✅ 200uA/2000uA/20mA +/-(1% +/-2)

✅ 200mA +/-(2% +/-2)

✅ 10A +/- (3% +/-2)

✅ 10uA-10A

- OHM

✅ 200ohm +/-(0.8%+/-2)

✅ 2k/20k/200k/2M[ohms] +/-(0.8%+/-2)

✅ 200Mohm +/-(1% +/- 2)

✅ 0.2ohm-200Mohm

✅ Transistor test: yes

✅ Automatic switch-off: yes

✅ Diode test: yes

✅ Circuit continuity indication: yes

✅ LCD display: yes

✅ Battery: 9V 6F22 (supplied)

✅ Display size: 15x46mm

✅ Dimensions: 67x124x22mm

✅ Meter is CE certified

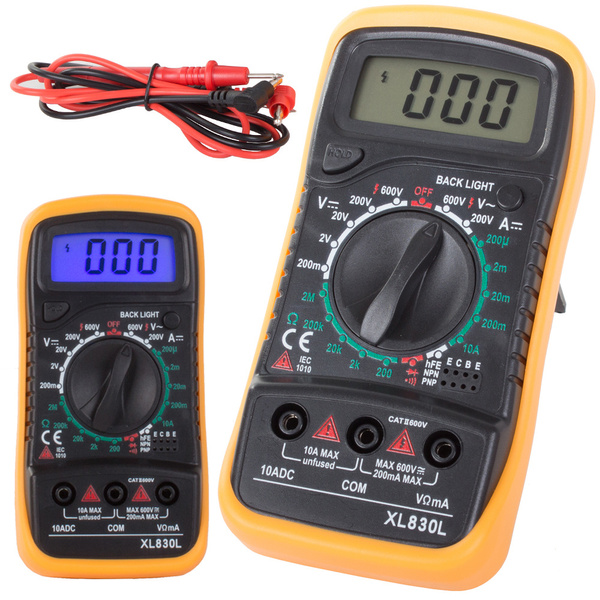

KIT INCLUDES:

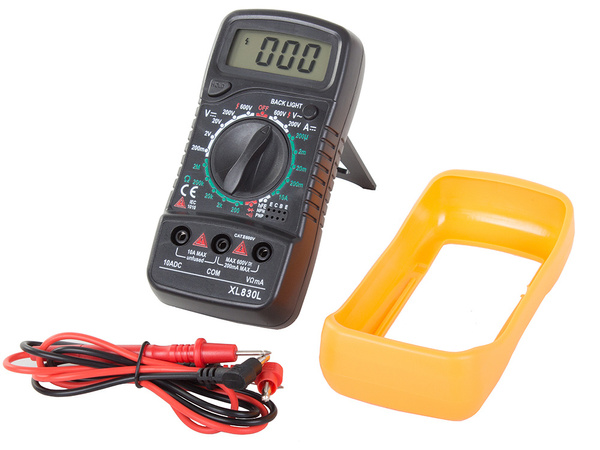

☑️ Factory new XL830L digital meter

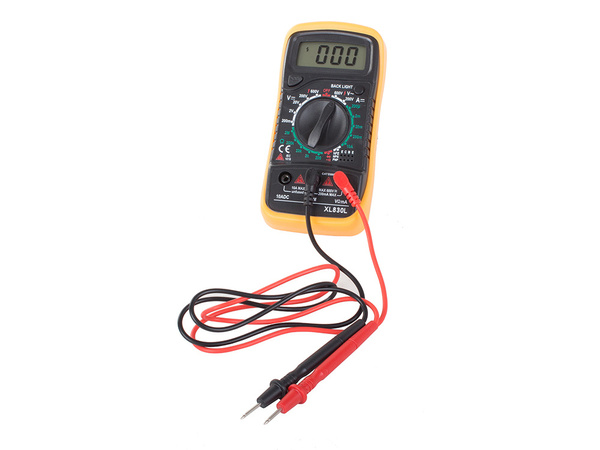

☑️ A set of test leads

☑️ 9V battery

☑️ Rubber case

☑️ Original packaging
